Model: SL-130
Power: AC110/220V, 150W
Bottle diameter: 20-150mm
Label height: 25-150mm
Label length: 25-350mm
Accuracy: ±1mm
Option: date printer

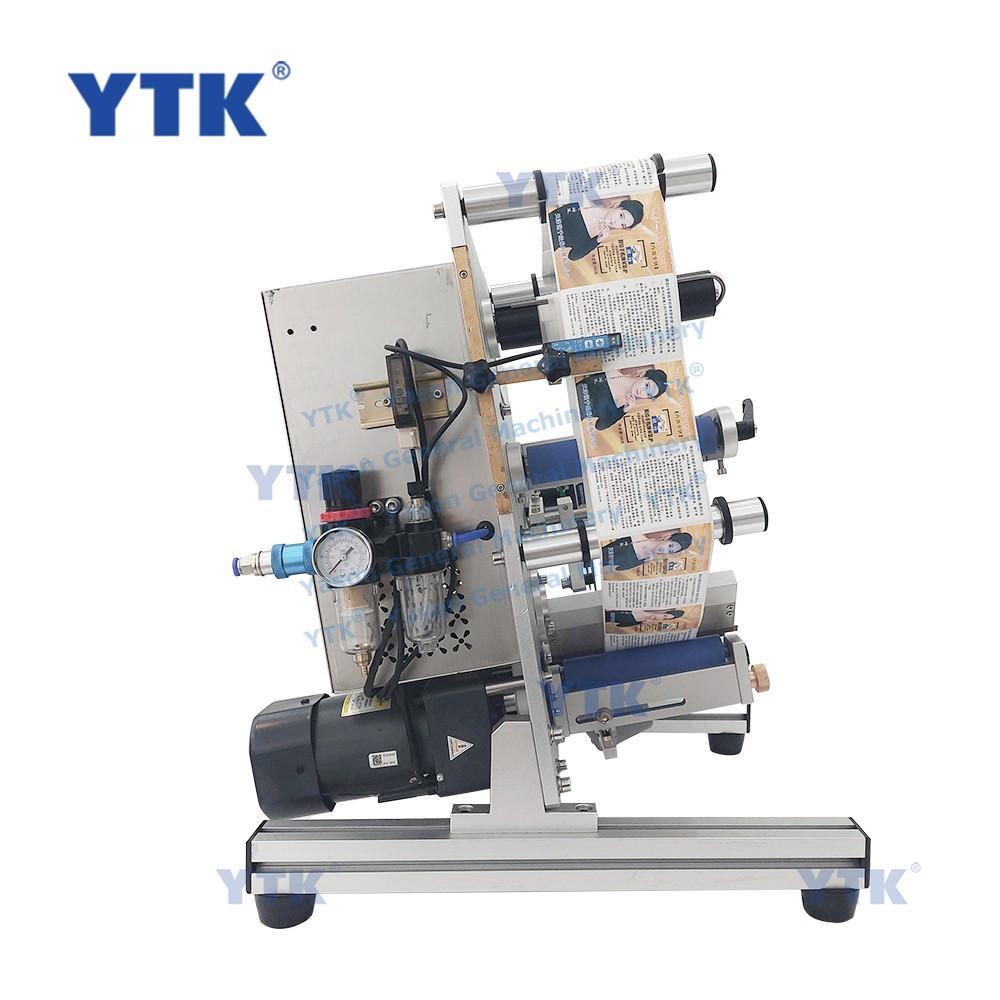

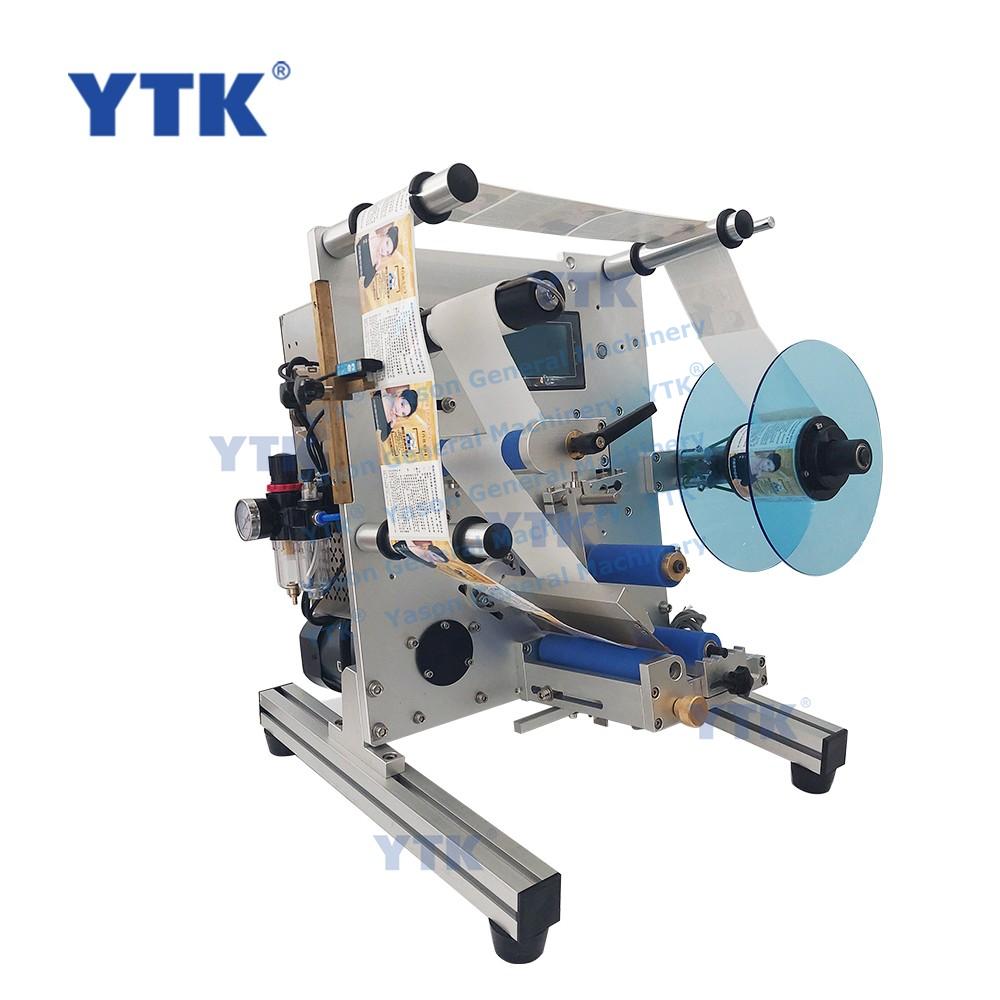

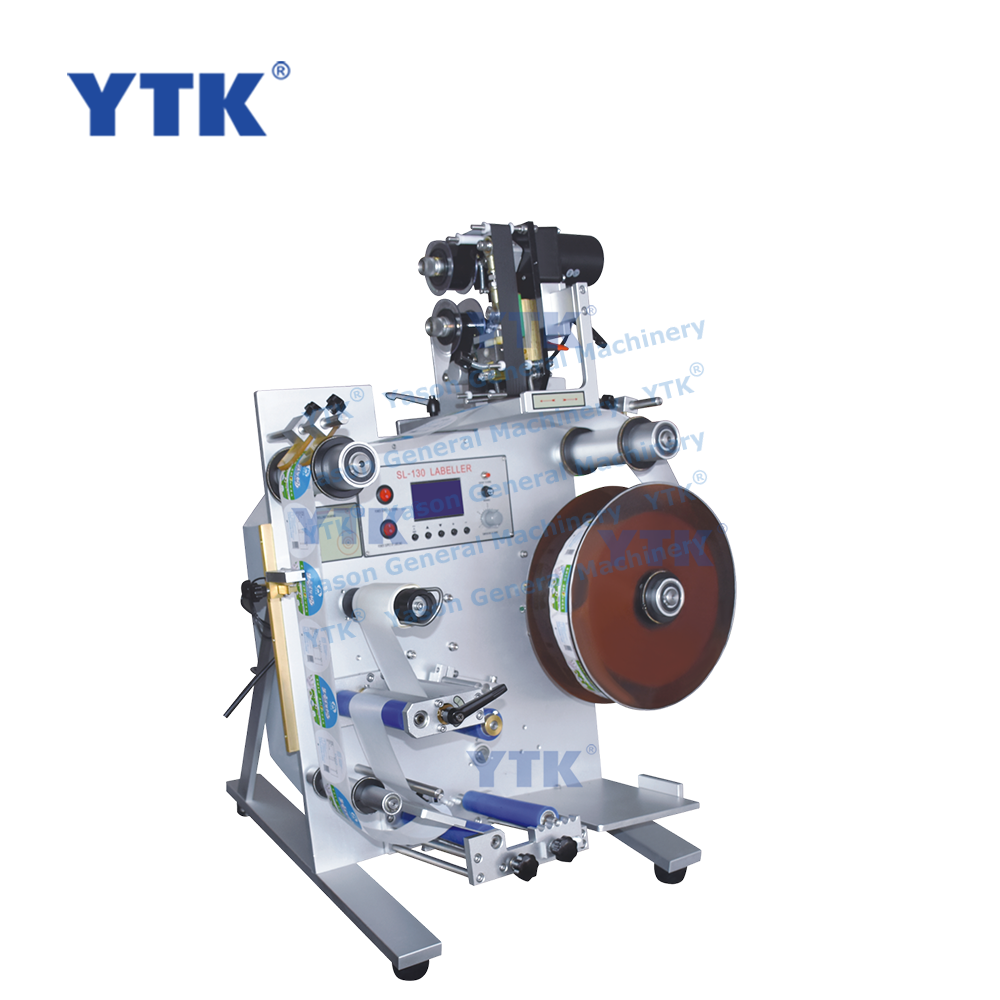

Semi-Automatic Double Sides Labelling Machine
for Round Bottle with Printer
This machine label 1 round bottle with 2 labels , so long as the 2 label's length is same .
This label machine is used for labeling and coding on various round bottle , coding, such as: glass bottles, plastic bottles, cans and so.
1, adopt precise electromagnetic clutch
2, advanced aluminum alloy anodizing with much longer lifetime
3, excellent motor can meet the large load, long-time operation
4, All parts and standard parts are made of stainless steel materials and refined
5, PLC control panel and lCD display
6, excellent inspection standard optical dipole to ensure high precision
Technical parameters
| Model | YS-130 |
| Voltage | AC200V/50HZ |
| Power | 150W |
| Max Label size | 120 (W) x 300 (L) mm |
| Minimum label size | 10 (W) x 30 (L) mm |
| Bottle diameter | 20-125mm |
| The label core size | Inner diameter : 75mm Outer Diameter: Max 300mm |
| Machine size | 580 x 680 x 860mm |
| Net weight | 45kg (including code machine) |
*Note: The above parameters for reference only.
The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
