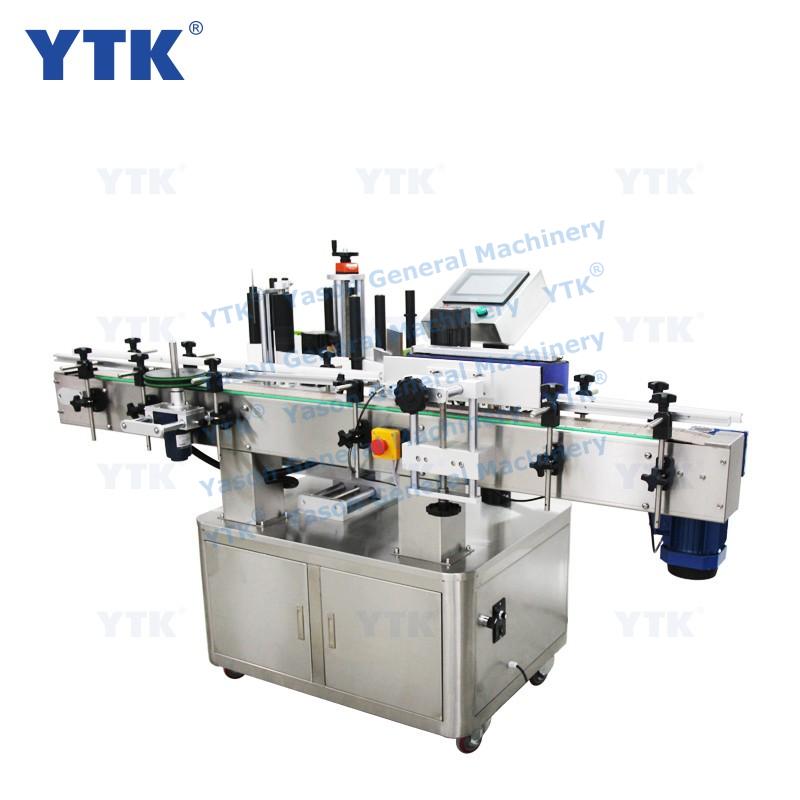

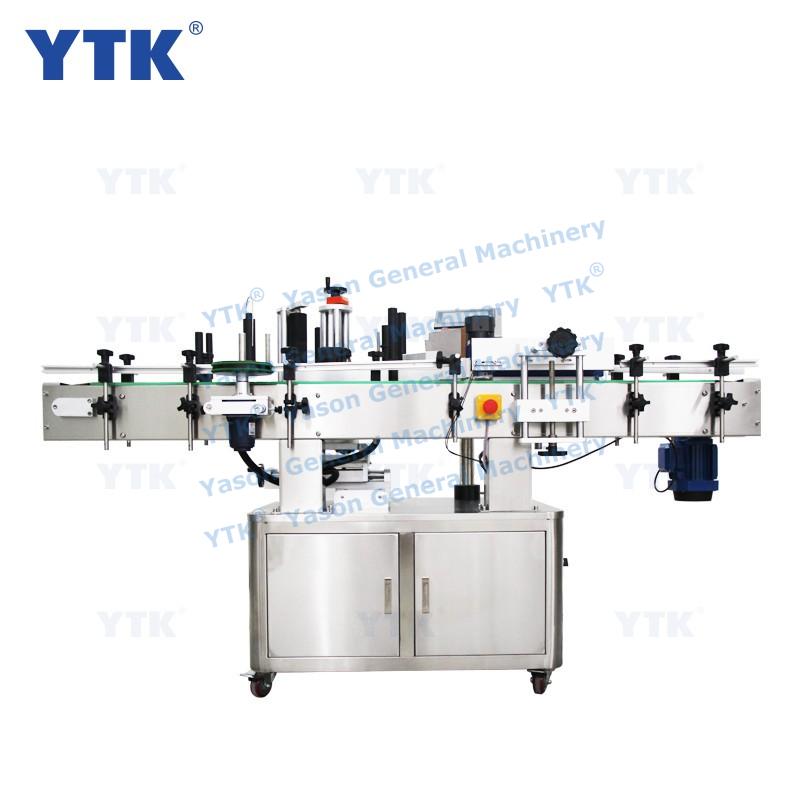

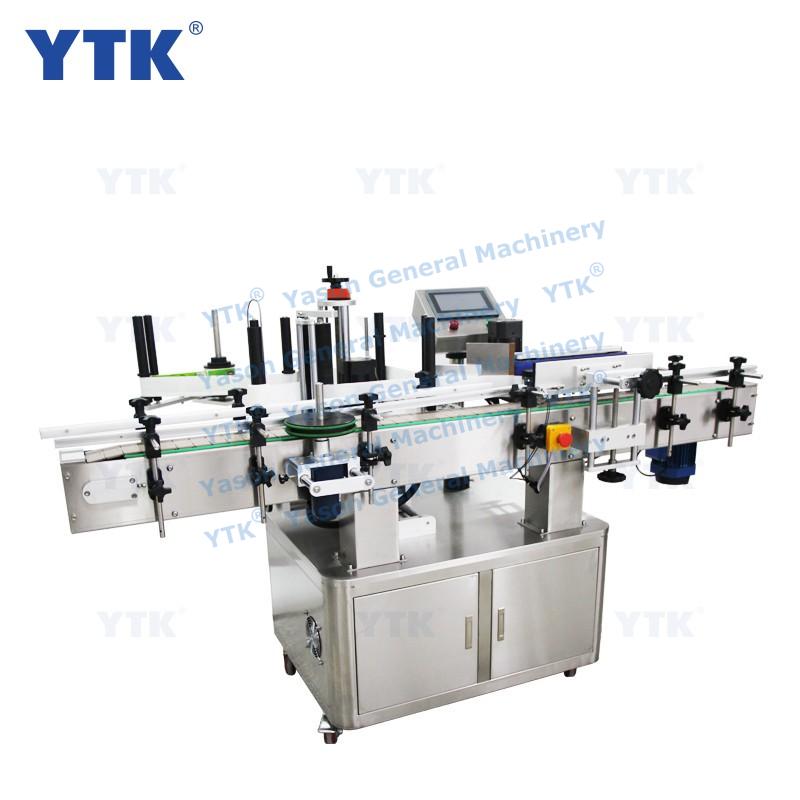

YTK-220 automatic round bottle labeling machine

Model: YTK-220
Bottle diameter: 15-120mm
Label height: 15-150mm
Label length: 25-300mm
Accuracy: ±1mm
Optional device: date printer, transparent label sensor

EMAIL



Assembly line Automatic Round Bottle Labeling Machine

Product Description

1. A fully automated labeling machine, very accurate and fast.

2. Easy operation with the coding function to print expire date or batch number on the label.

3. Optional bottle organizer to improve usability and productivity and save more time.

4. Fully customizable according to your bottle's shape and size.

5. The transparent label is OK to use.

6. T6 aluminum alloy and SS304, GMP standard.

Technical Parameters




Model

YTK-220

Power

AC110V/220V, 50/60HZ, 1500W

Drive Mode

Servo Motor

Labeling Direction

Horizontal

Labeling Speed

0~200 pcs / min

Labeling Accuracy

±1mm (depends on bottle's shape)

Bottle Diameter

30~120mm

Label Width

15~150mm

Label Length

25~300mm

Label Roll Outer Diameter

max 350mm

Label Roll Inner Diameter

75mm

Weight

200kg

Size

2000X950X1400mm

Optional Function

date coding, transparent label sensor


 *Note: The above parameters for reference only.

The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
