Model: YS-130II
Power: 60W
Filling speed: max 3L/min·nozzle
Accuracy: ±1%
Video Description

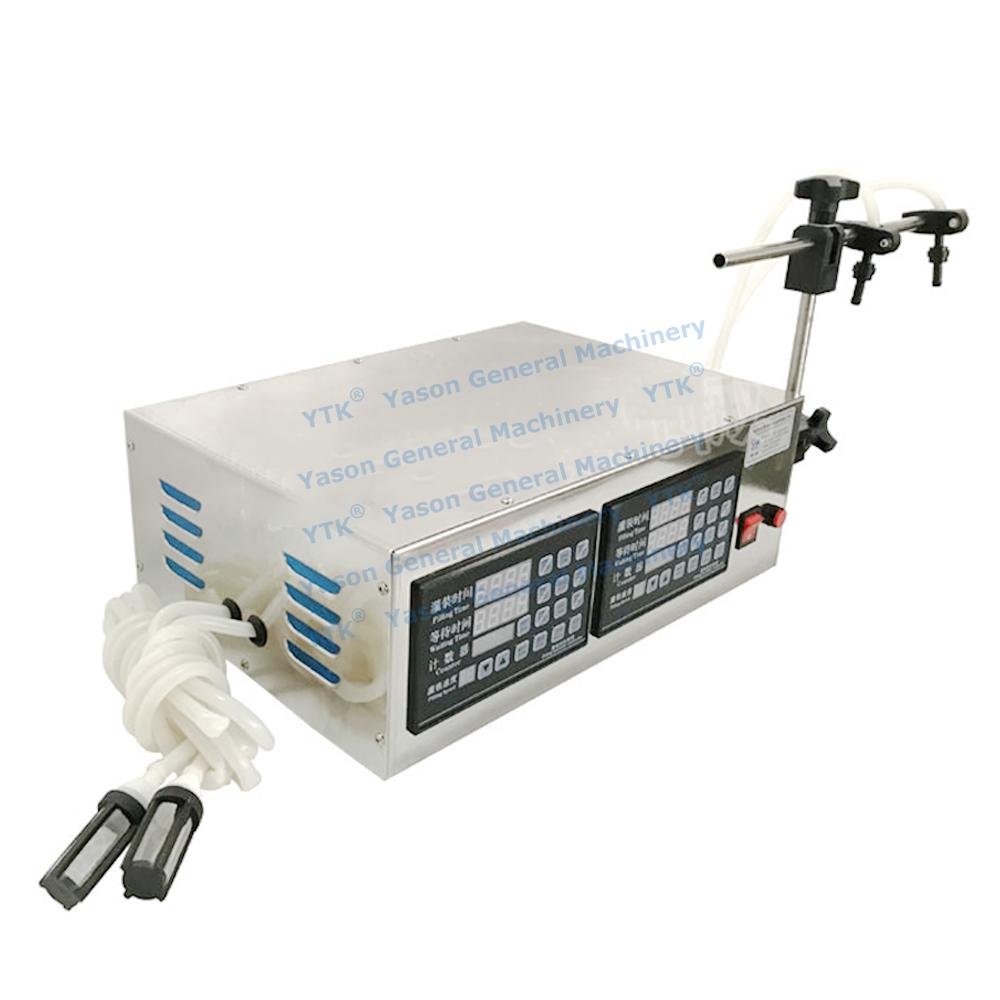

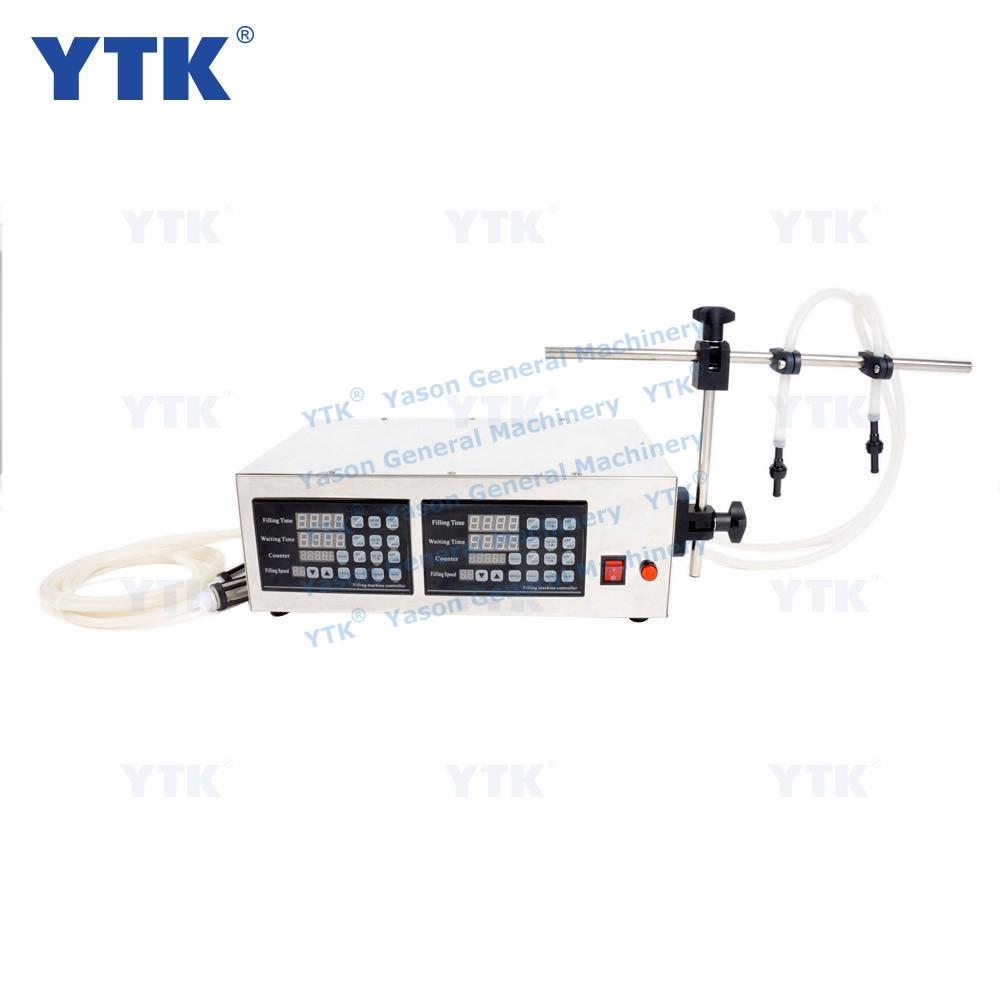

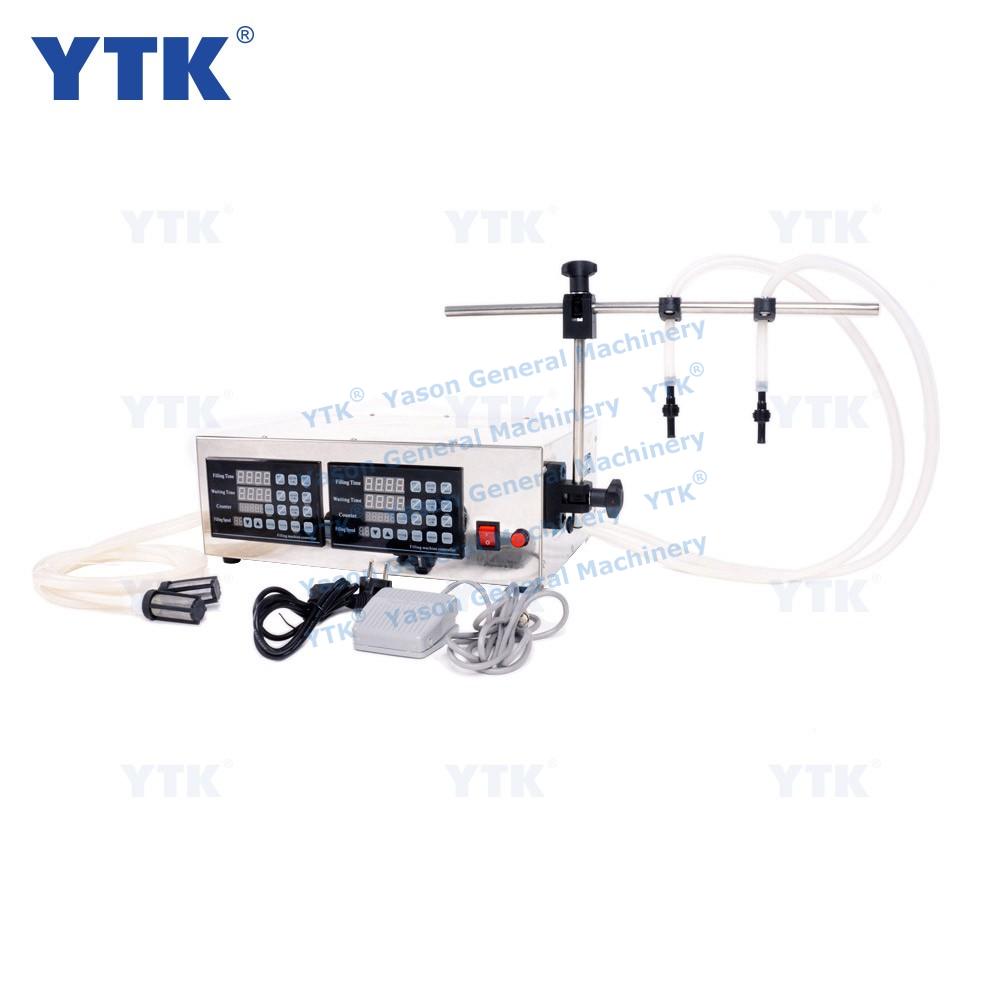

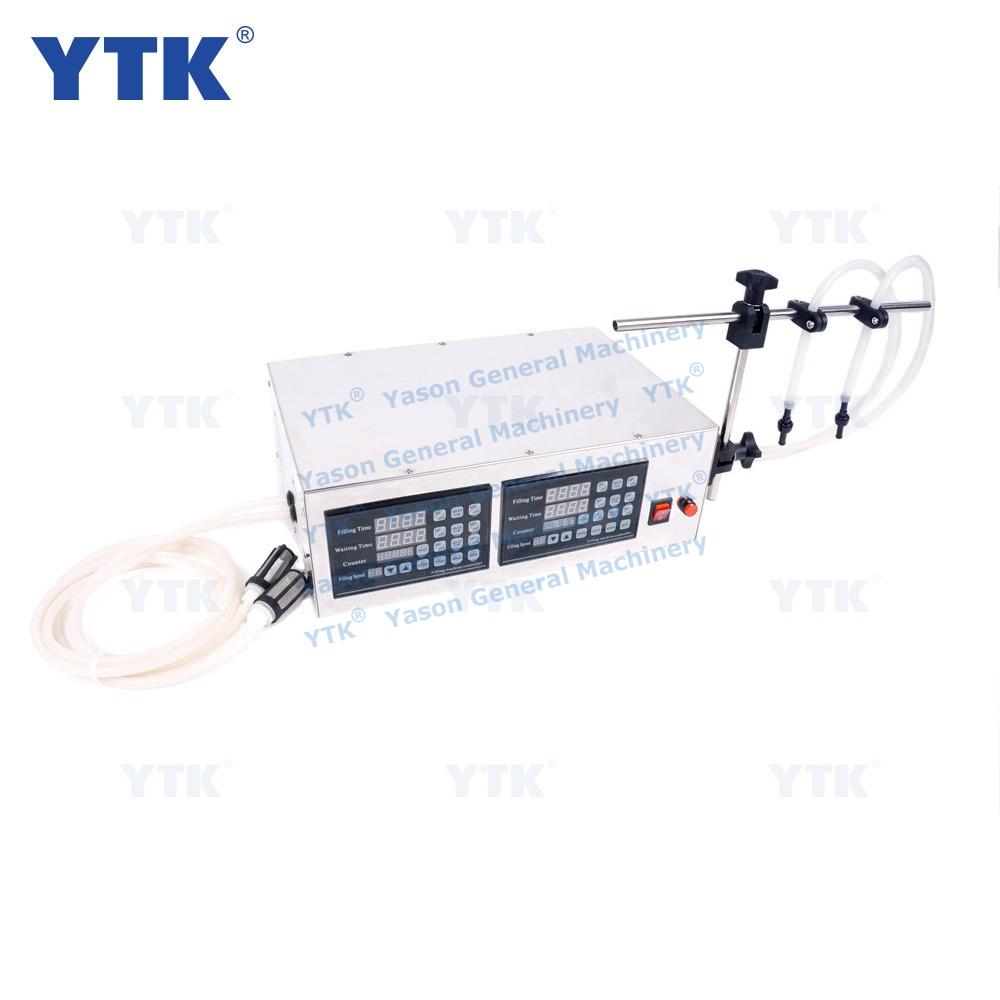

Digital Control 3-3000ml Water Soft drink Liquid Filling Machine YS-130
Parameters
Voltage | AC220/110V, 50/60Hz |
Power | 60w |
Filling speed | 3L/min·nozzle |
Filling delay | 0.01~999.9s |
Counter | 1-99999 |
Filling nozzle | 8mm(2/4/6mm are optional) |
Machine size | 450*250*160(mm) |
Operation Instruction

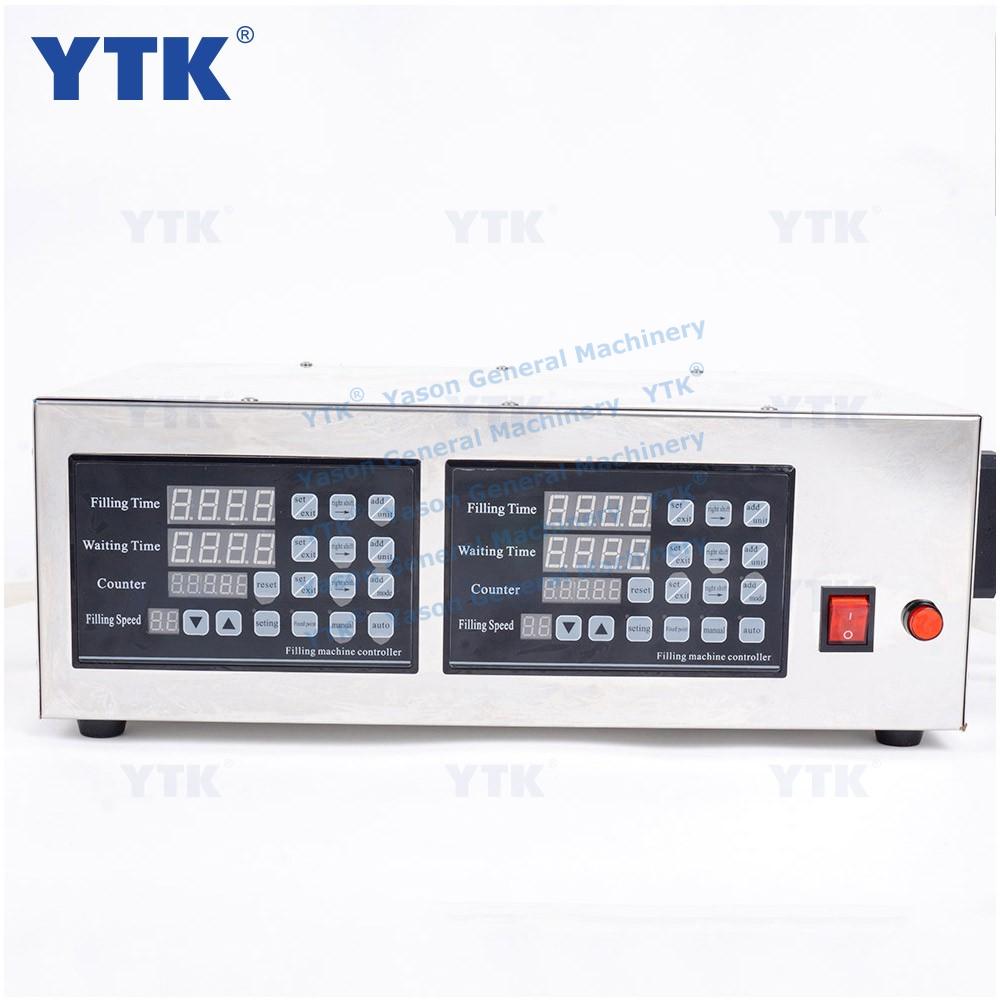

1, function description
a, filling time : for adjusting the filling time
b, waiting time : waiting time between each filling when the machine is filling automatically .
c, counter : filling counter
d, filling speed : adjusting the speed
e, fiilling machine controller : for adjusting the filling
2,Operation steps
a, turn on the machine , and put the bottle under the filling head
b, push the button "setting". When the filling reaches the range you want , push the button "setting" once again . Then the machine will keep the filling range in memory .
c, push the button "auto ", and it will work automatically .Push the button "manual", and it will work manually .
3, the warranty of the machine is 1 year .
The pump is diaphragm pump and is consumable . When you find the filling turns slow, please change the pump .
Note
The following link is the video about this filling machine:
https://www.youtube.com/watch?v=4fT-gTY5gWE&feature=youtu.be
