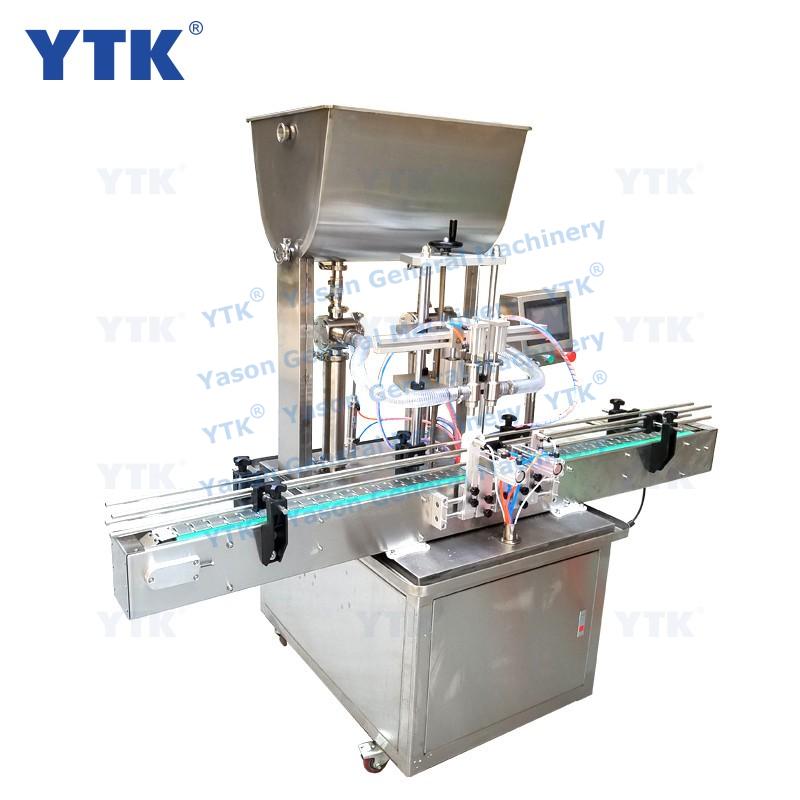

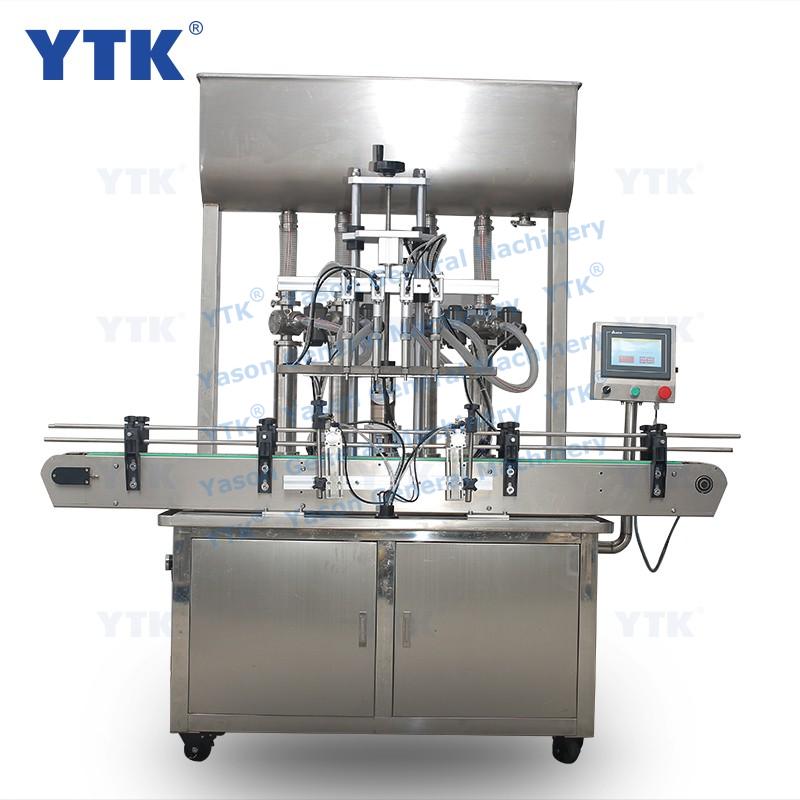

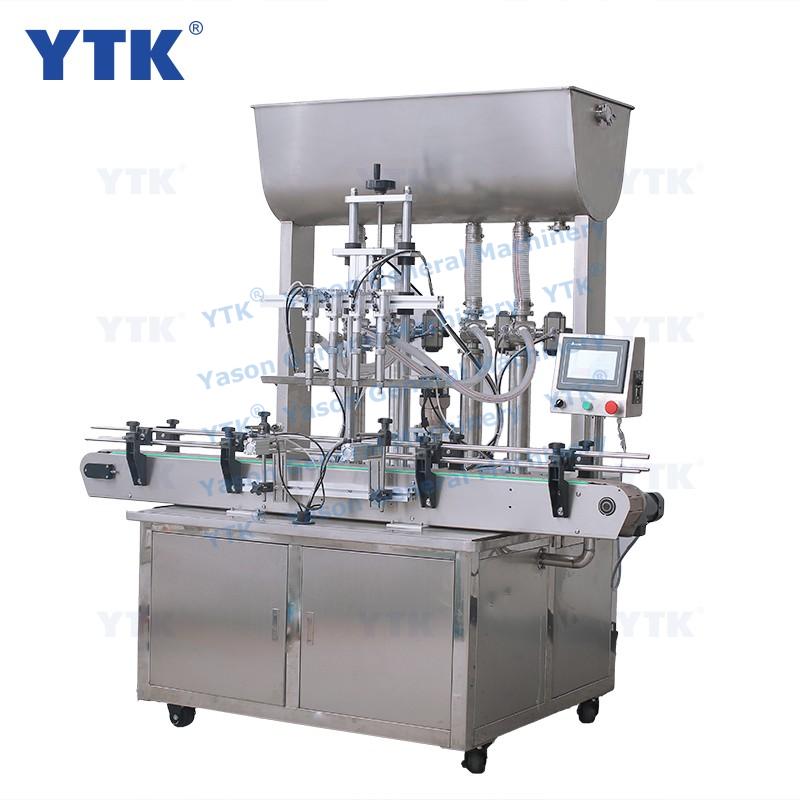

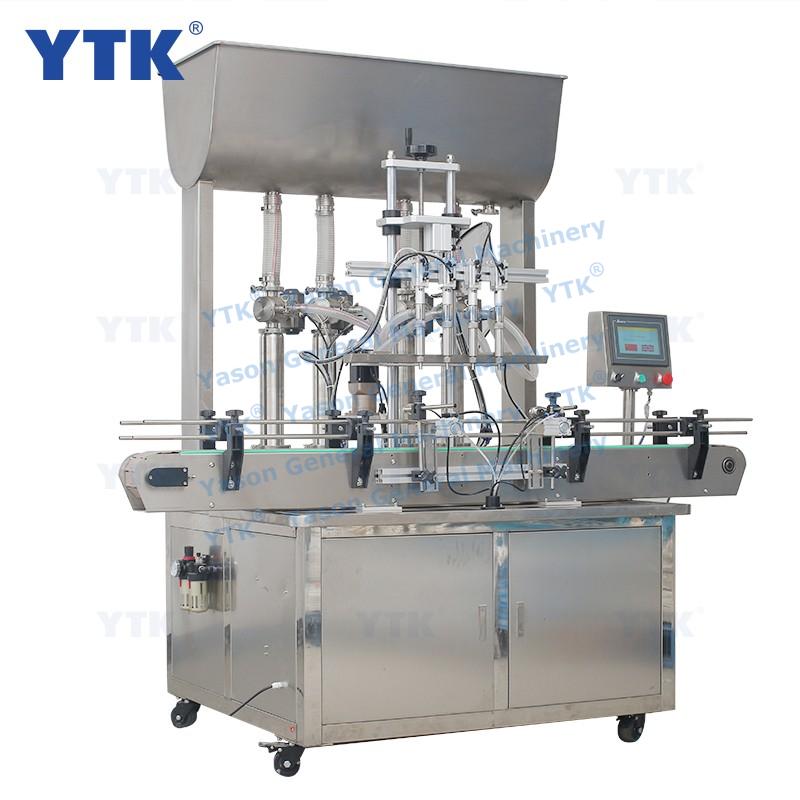

APF2/4/6/8 assembly line automatic paste filling machine

Model: APF2/4/6/8
No. of filling nozzle: 2/4/6/8 or custom
Filling range: 5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Filling speed: 5-10bottles/nozzle·min
Accuracy: ±1%
Air pressure: 0.4-0.6MPa

EMAIL

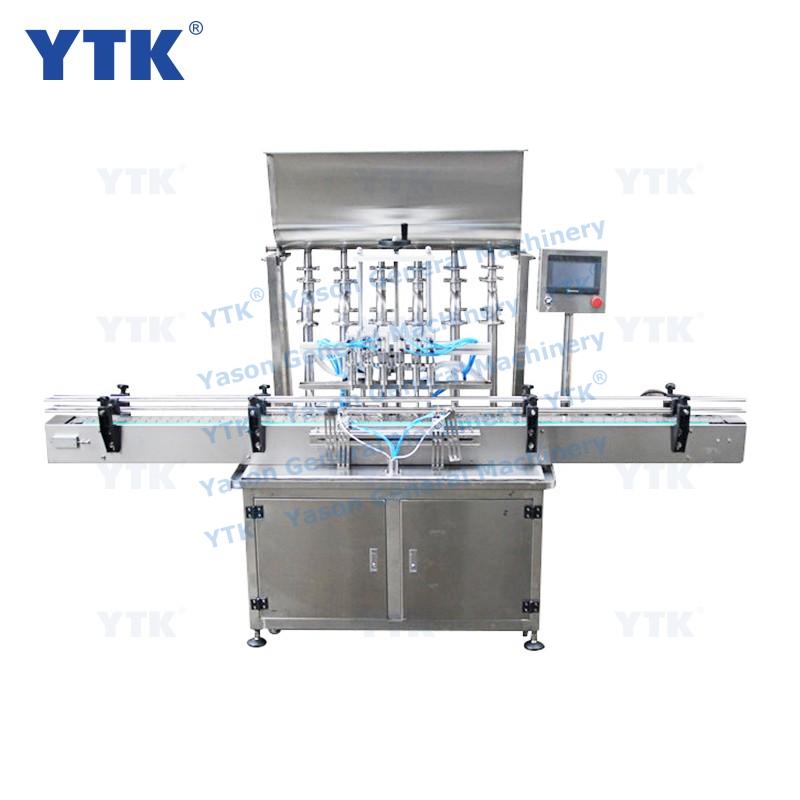

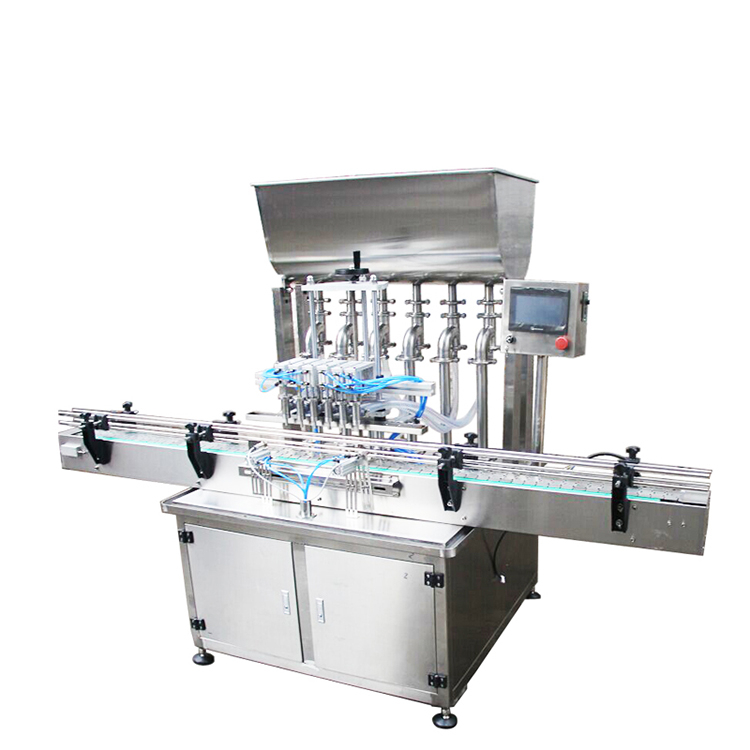

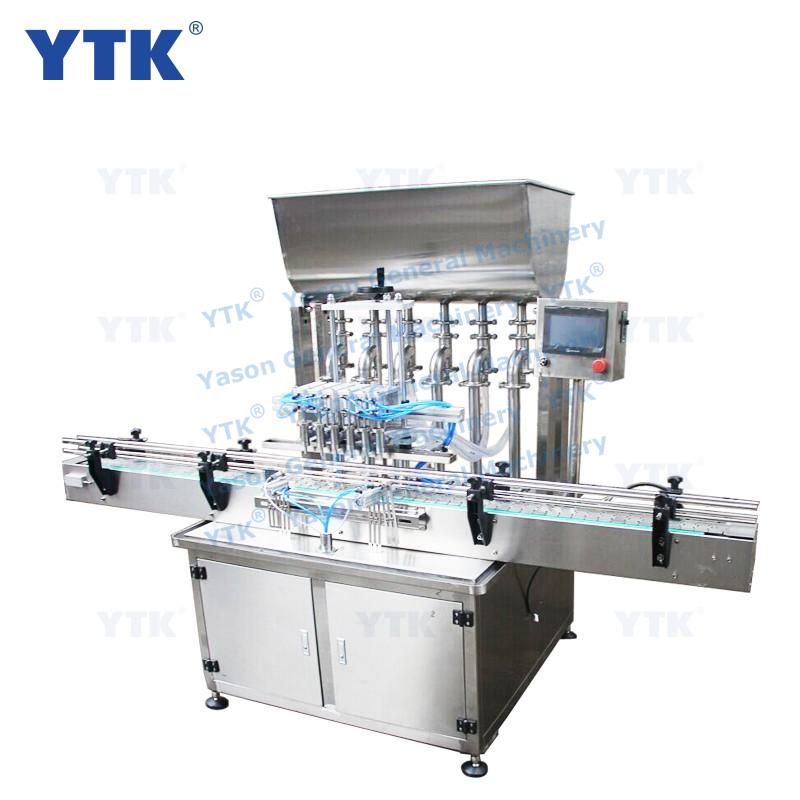

Automatic six heads paste filling machine





Product Description




Full automatic quantitative filling machine, using the direct type design microcomputer control, accurate filling measurement, easy to adjust filling quantity, flexible and application of 100-5000ML bottle type (including special type bottle) filling. More than 90% of the parts of the whole machine are made of 304 stainless steel, 316L for contacting material parts, which conform to international hygienic standard. It is beautiful and generous in appearance; the control system adopts imported electrical components and the working procedure is controlled by switch. The operation method is simple and convenient. Most of the transmission parts are controlled by high quality and precision pneumatic components, which have the characteristics of stable performance, safe and reliable operation, accurate measurement and so on.



APF2/4/6 Assembly line automatic pneumatic piston filling machine for sauce juice lotion butter



Features:

1. The filling adjustment system is composed of variable frequency motor, PLC and touch screen, solenoid valve, material cylinder, actuator and other combination through control setting, which can be easily adjusted, easy to operate and accurate in measurement.

2. The container positioning system is completed by cylinder. The customer can adjust itself according to the containers of different specifications and shapes, the method is simple and the positioning is accurate.

3. The anti dripping system adopts cylinder control. When the filling nozzle is blocked, the recycle device for the leakage slot is adopted to further overcome the leakage phenomenon.

4, some filling materials are easily filled with bubbles. We design the filling nozzle into the outer plug to solve the bubble problem, and use the "PLC" program to control the function of the whole filling edge filling edge, so that the filling measurement is more accurate.

APF2/4/6 Assembly line automatic pneumatic piston filling machine for sauce juice lotion butter







Technical Parameters





Model

APF6

Driven Type

Electric and Pneumatic

Voltage

220V/110V, 50/60Hz

Power

0.5KW

Air pressure

0.5-0.7Mpa

Speed

50-60bottles/min

Accuracy

±1%

Dimension(L*W*H)

2600(L)x1500(W)x1900(H)mm

Weight

750kg
