FRD-1200V vertical large size continuous heating sealing machine large bag sealer

Model: FRD-1200V
Power: 1355W
Sealing width: 6-12mm
Conveyor load: max 15kg
Coding method: solid in wheel

EMAIL

FRD-1200V large bag heat sealing machine with ink wheel coding function

Features

1.The machine adopts vertical sealing structure. When the height of the package changes, the operator only needs to easily shake the handle to make the sealing height reach the accurate value.



2.The reducer motor is made of high standard technical requirements, with high technology content, space saving, reliable and durable, and can bear 15kg.



3.The film sealing belt has been heated for a long time, and the sealing is firm and beautiful. The heating of pure copper heating block is even, and the sealing efficiency is more than doubled.



4.When sealing, it can be placed vertically, which is ergonomic, convenient and labor-saving. Fixed sealing position of feed inlet, with good effect and safe operation.



5.The height setting of the conveying part can be adjusted according to the product size, and the upper and lower positions of the conveying part can also be adjusted.

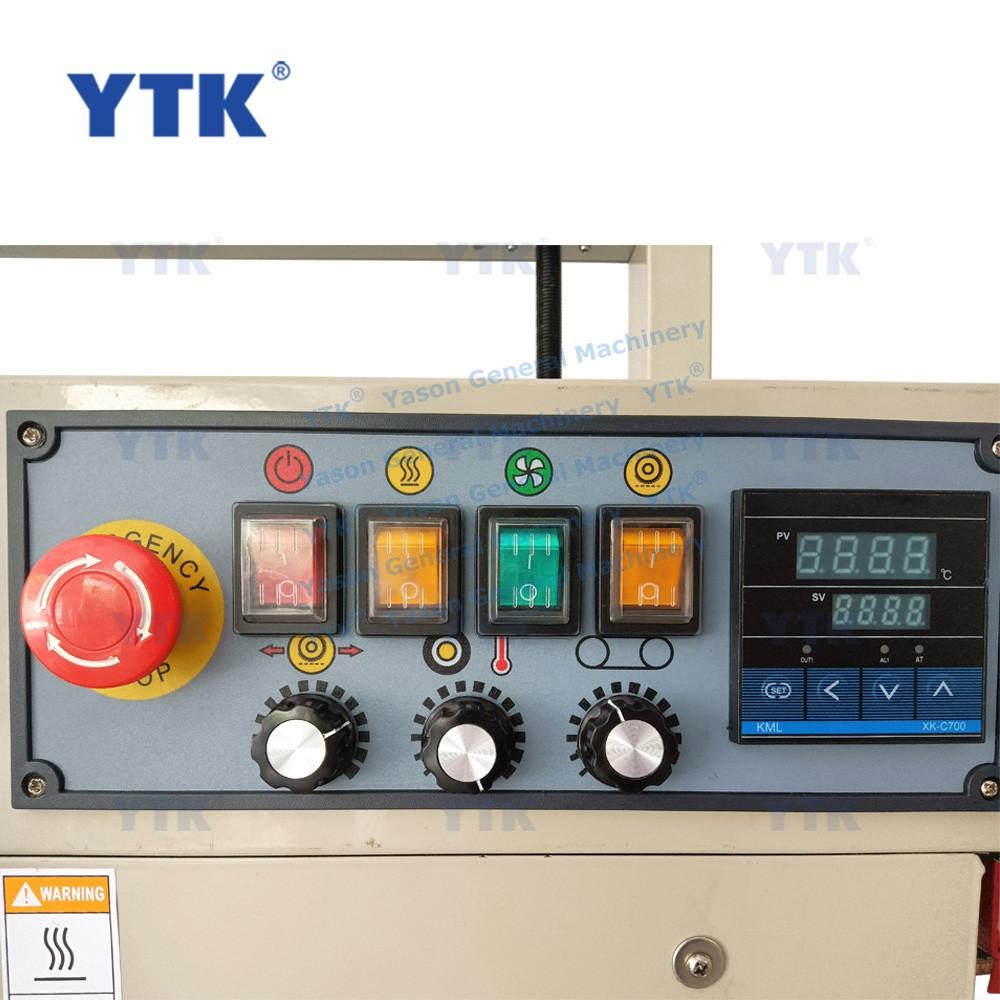

6.Intelligent digital display temperature controller with adjustable temperature, emergency stop switch, safe operation, adjustable speed.



7.Good conveyor belt, safe operation.



8.Two cooling fans are equipped to cool the sealed pocket quickly after heating, and the heat dissipation is even and the sealing effect is firmer.


Parameter

Model:FRD-1200V
Power:AC220V 50Hz, 1355W
Speed:
0-12m/min
Film thickness:
≤0.08mm
Sealing width:
12mm
Temperature:0-300℃
Coding method: solid ink wheel
Conveyor load:max 15kg
Machine size: 137*58*123cm
Gross Weight:140kg
*Note: The above parameters for reference only.

The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
