Model: M90
Power: 15W
Flow speed: max 90ml/min
Filling range: 1-50g
Net weight: 2.5kg
Weighing filling machines on the market generally use the constant flow rate of the pump for filling. This type of filling machine has the following disadvantages: if the filling efficiency is to be ensured, a large flow rate filling is required, and the error is large when the filling flow rate is large; if the filling accuracy is high and the error is small, it is required to be very low. The flow rate is filled, and the filling flow rate is small, but the error is small but the work efficiency is low. This problem has not been solved.

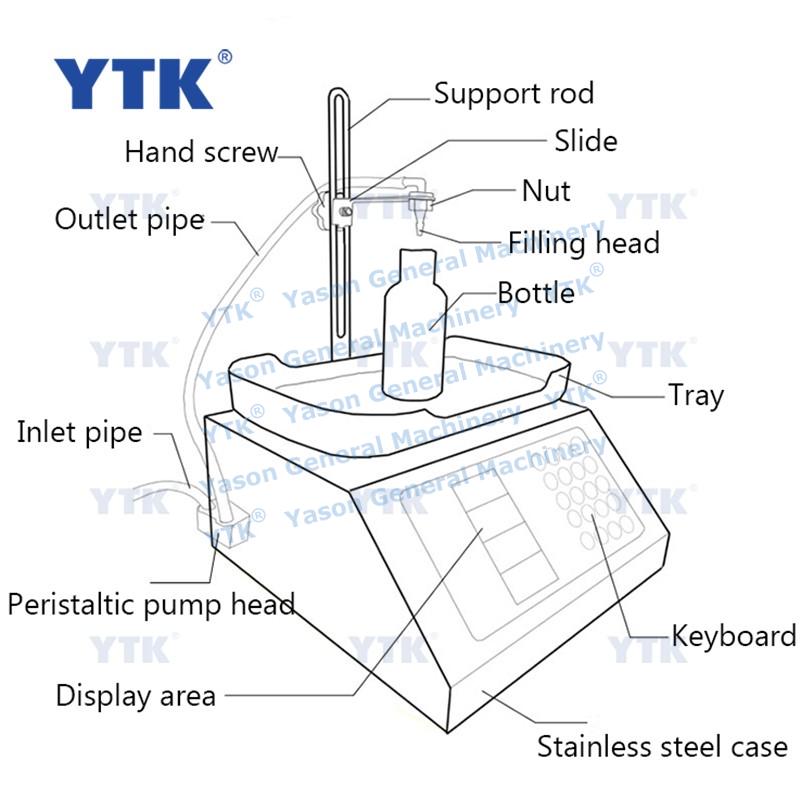

CSY-M90 automatic frequency conversion micro-filling machine effectively solves the above problems. It uses a high-precision peristaltic pump to work with the inverter. After the start of filling, the pump first fills at the maximum flow rate, ensuring fast and efficient filling. When the filling volume is about to reach the set weight, the inverter automatically slows down the pump flow rate. When the filling volume reaches the set weight, the pump is turned off to ensure the accuracy of filling. After repeated tests, the accuracy of the actual filling effect is shocking!
Product model: CSY-M90
Rated voltage: AC110V-220V
Rated power: 15W

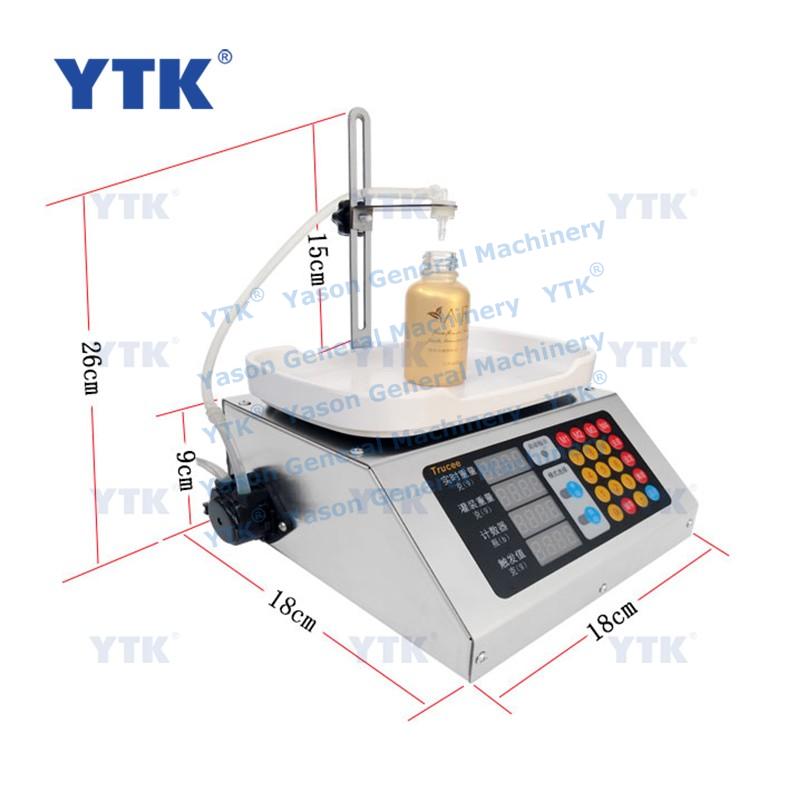

Product size: length 1 8 cm* width 1 8 cm* height 1 2 cm
Machine weight: 1.65kg
Maximum flow rate: 90mL / min
Applicable capacity: 1-50m or 1-50g
Filling height: adjustable from 1 to 15 cm
Filling error: ≤0.1 g
1, Automatic frequency conversion speed reduction, ultra high precision!
The high-precision peristaltic pump is used to control the filling by setting the weight of the filling, and the automatic deceleration is approaching the end, and the quantity is automatically stopped. After repeated tests, the filling effect is extremely accurate and zero error.
2,Put the bottle automatically peeled. Automatically start after peeling, and automatically slow down near the end, the filling volume is automatically stopped, and the bottle is automatically reset.
3, No need to correct, no need to debug, you can use it. All you have to do during the filling process is to put the empty bottles on them and take them out after filling. The whole process is super easy. Really free labor from complex operations.
4, The difference in bottle weight is large, filling has no effect! There are many bottles in actual production (such as thick-walled glass bottles, ceramic bottles, steel cylinders, etc.), the weight difference of the empty bottles is very large, which causes the batch weight filling Very troublesome. The product has an automatic peeling function before starting, which perfectly solves this problem, and the empty bottle difference is not affected at all.
Suitable for small bottles of various oral liquids, syrups, sprays, perfumes, essential oils, solution reagents, product trials, etc. within 50ml.
Stainless steel case
Both the casing and the water pipe bracket are forged from high-quality stainless steel, which is corrosion-resistant and has a long service life.
Flat + tray
The creative design of the “flat + tray” solution makes it easy to handle and easy to clean. It can effectively protect the host from liquid erosion.
High precision peristaltic pump
The product adopts high-precision peristaltic pump, which is stable and uniform in filling, and has high controllability. Effectively improve filling accuracy.
Food grade silicone tube
Imported food grade silicone tube 3mm inner diameter, 5mm outer diameter, colorless and odorless, high transparency, easy to clean.
Stainless steel strut + slide
This design has been patented, and the height adjustment is more convenient, firmer and more stable.
