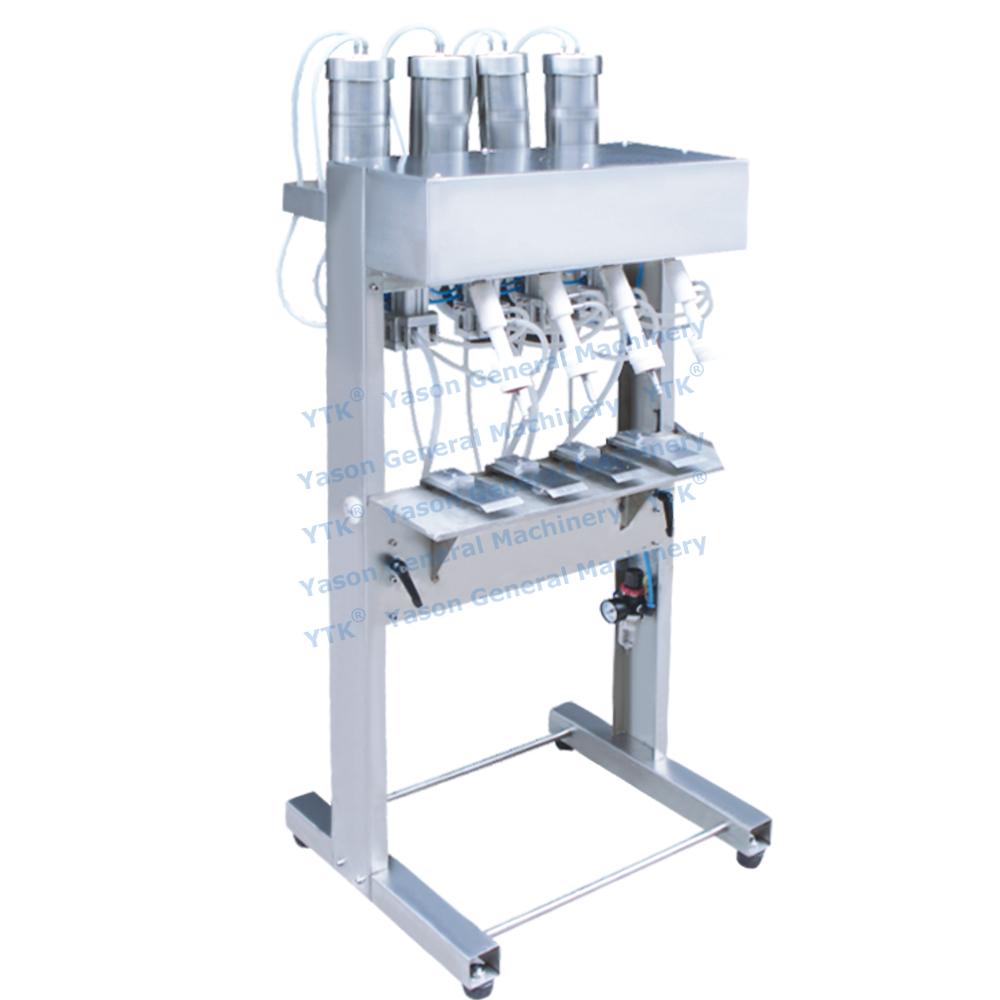

PPF2/4/6 pneumatic vacuum perfume bottle liquid filling machine

vacuum perfume filling machine

♦Instructions♦

Vacuum liquid filling machine is pure pneumatic equipment, no electricity, it is one of the most economical filling machine is particularly suitable perfumes, toilet water and other liquid products, filling small doses, is your wiring or stand-alone use ideal choice.

Vacuum filling principle fixed level, regardless of the volume are the same bottle, filling level will remain the same. The series machines easy to operate, the operator simply stuck in the bottle under the filling head or pedal to perform filling. It is mainly power as gas source, customers must bring their own air compressor equipment.

♦Features♦

1)  Filling capacity approach is to control the height of liquid

2)  The shape of the bottle is not strictly required

3)  Simple structure, easy operation and maintenance

4)  Pure pneumatic machinery meet requirements of anti-explosion

5)  Equipped with automatic drainage system

♦Parameter Date♦

Equipped with air pressure :0.5-0 .8 MPa

Level accuracy: ± 1mm

Viscosity range: maximum applicable Viscosity 20Cps (static viscosity)

Production capacity: 50 bottles / min

Bottle height: ≤ 250mm

Bottle neck diameter: 4.5mm-35mm

Adjustable level high (from the bottle) :15-50mm
