Model: YTK-160
Power: 1500W
Label height: 20-180mm
Label length: 20-300mm
Accuracy: ±1mm
Optional device: date printer, transparent label sensor

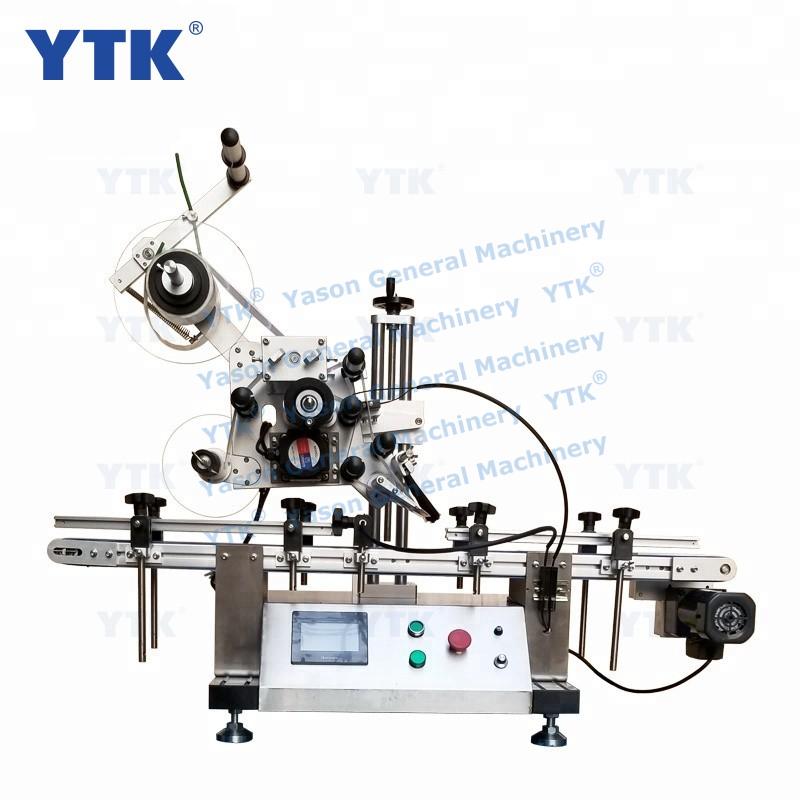

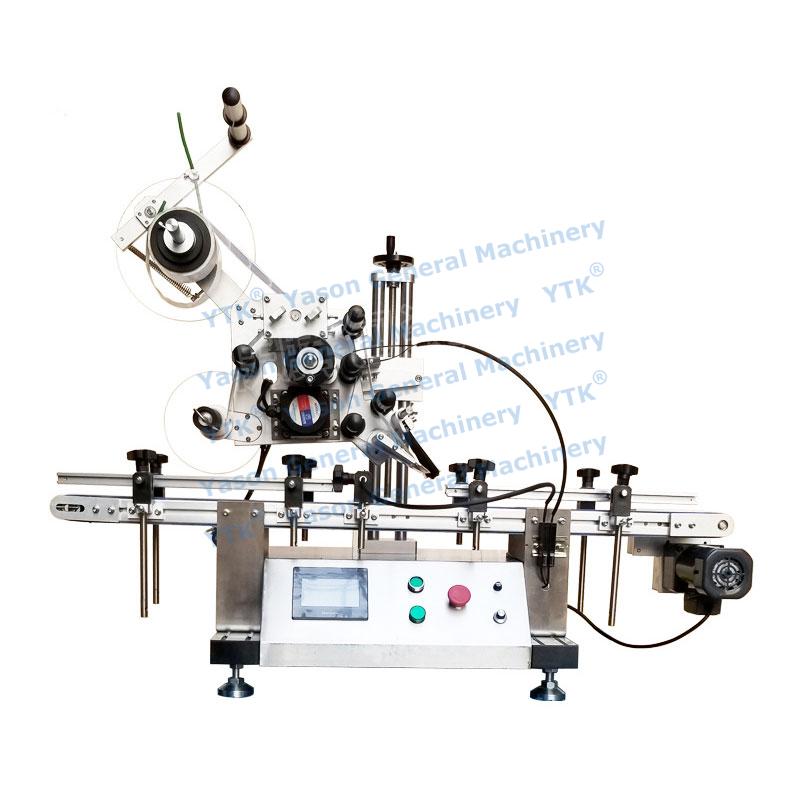

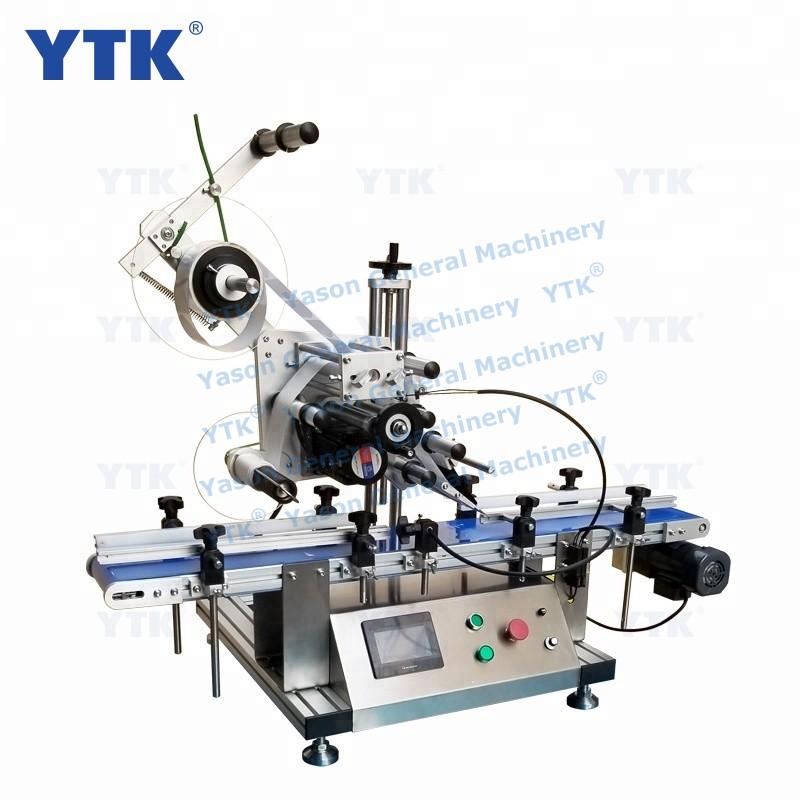

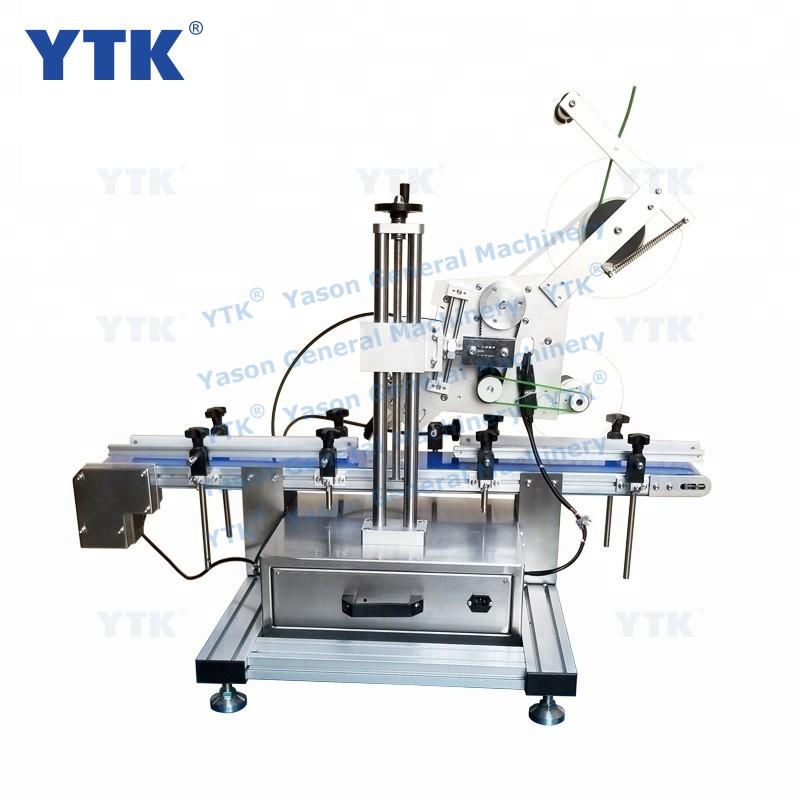

Automatic flat surface labeling machine
for bags boxs cases square bottles
Product Description
1. The machine adopts 304 stainless steel and aluminum alloy material, durable;
2. The whole machine adopts imported servo control system, make the machine running stable;
3. Advanced affinity touch human-machine interface, easy to operate;
4. Use of the world's famous brands electrical components, ensure that the machine is reliable;
5. Conveying and automatic labeling speed synchronous tracking, make the adjustment quicker and easier;
6. Automatic sensor detection, automatic stop and alarm, prevent waste;
7. Optional configuration (ribbon printer) can print production date and batch number online, improve production efficiency.
Technical Parameters
Model | YTK-160 |
Labeling speed | 20-200pcs/min |
Label roll inner diameter | 76mm |
Label length | 20-300mm |
Label height | 20-180 mm |
Labeling precision | ±1mm |
Dimension | 1200*500*650mm |
Weight | 100Kg |
*Note: The above parameters for reference only.
The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
